4mm Oval Lamp

3D Step File

Information Inquiry:

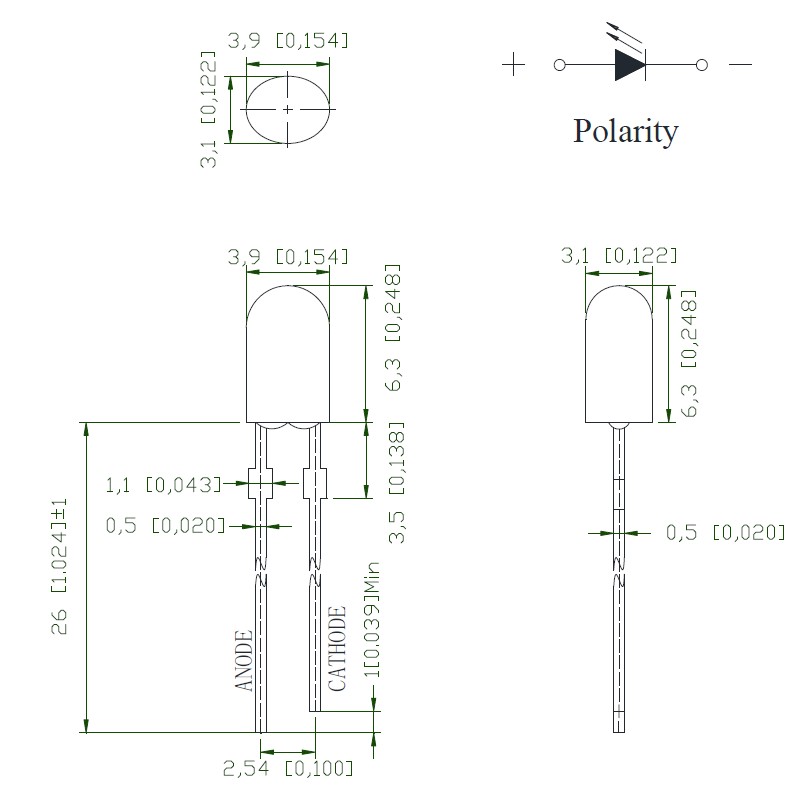

4mmOval_2leads-CAD-02

Product Color λ (nm) IF (mA) IV (mcd) VA 2θ1/2 VF (V) Lens Color datasheet
max
INO-4ABUB11040 Red 624 20 2200 110/40 2.4 R.D. Download
INO-4AGUG11040 Green 525 20 2900 110/40 3.4 G.D. Download
INO-4ARUR11040 Yellow 590 20 1000 110/40 2.4 Y.D. Download
INO-4AYUY11040 Blue 470 20 600 110/40 3.4 B.D. Download
