Datasheet

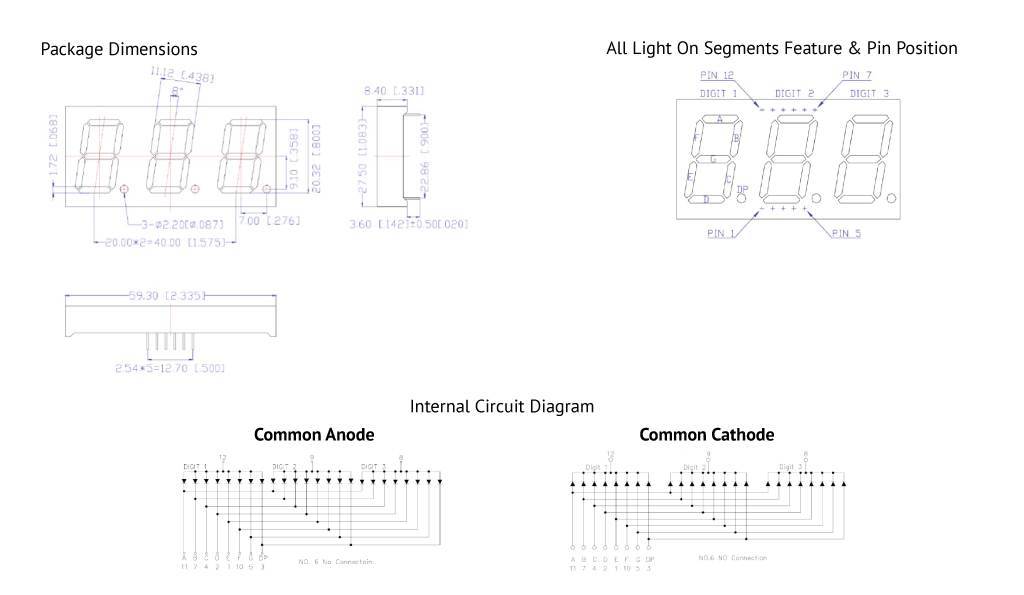

TD80

P/N	Polarity	IF(mA)	Color	λD (nm)	IV (mcd)	VF (V)
P/N	Polarity	IF(mA)	Color	λD (nm)	IV (mcd)	typ.	max
INND-TT80YGAG	Common Anode	25	Yellow Green	570	16	2	2.8
INND-TT80YGCG	Common Cathode	25	Yellow Green	570	16	2	2.8
INND-TT80YAG	Common Anode	25	Yellow	590	55	2	2.8
INND-TT80YCG	Common Cathode	25	Yellow	590	55	2	2.8
INND-TT80AAG	Common Anode	25	Amber	605	75	2	2.8
INND-TT80ACG	Common Cathode	25	Amber	605	75	2	2.8
INND-TT80RAG	Common Anode	25	Red	630	35	2	2.8
INND-TT80RCG	Common Cathode	25	Red	630	35	2	2.8
INND-TT80DRAG	Common Anode	25	Deep Red	645	27	2	2.8
INND-TT80DRCG	Common Cathode	25	Deep Red	645	27	2	2.8
INND-TT80GAG	Common Anode	30	Green	525	220	3.2	3.8
INND-TT80GCG	Common Cathode	30	Green	525	220	3.2	3.8
INND-TT80BAG	Common Anode	30	Blue	465	29	3.2	3.8
INND-TT80BCG	Common Cathode	30	Blue	465	29	3.2	3.8
INND-TT80WAG	Common Anode	30	White	X:0.27	150	3.2	3.8
INND-TT80WCG	Common Cathode	30	White	Y:0.25	150	3.2	3.8
