5 mm Round Lamp Tri-Color

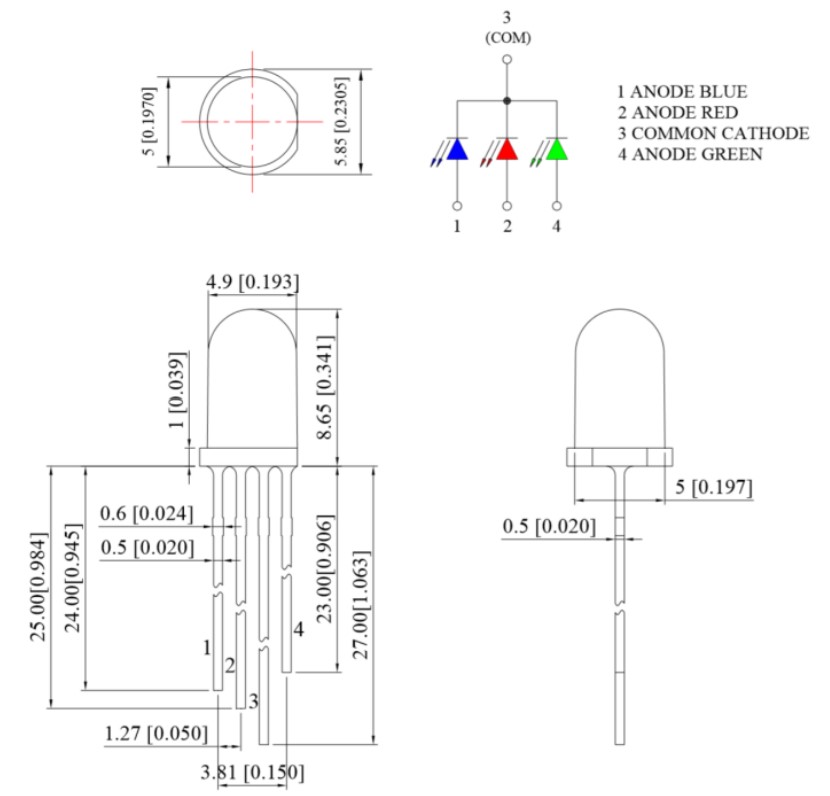

INL-5TB4URGB25

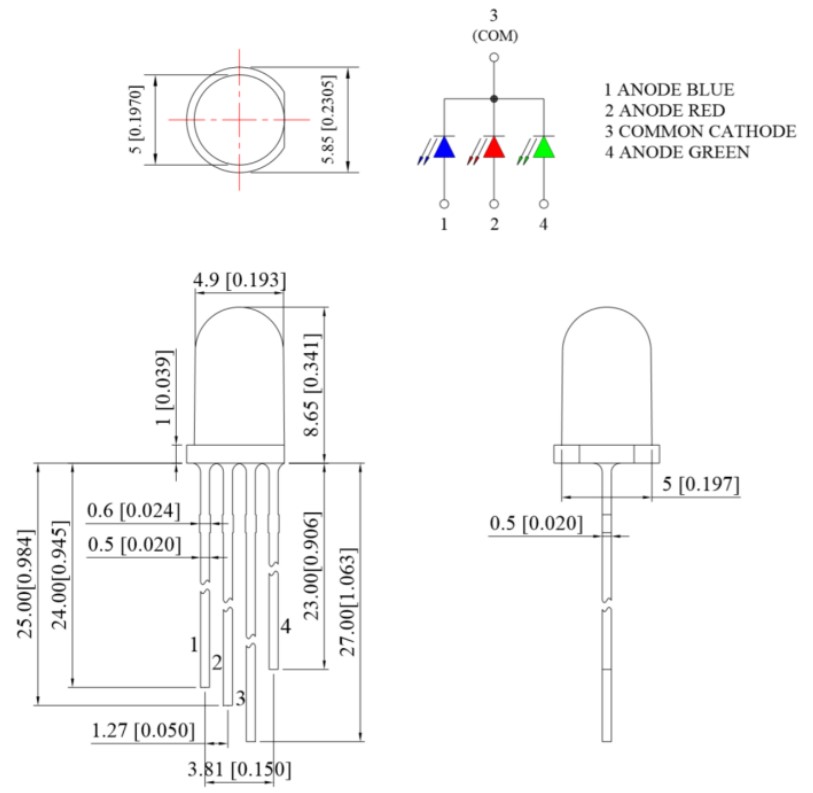

INL-5TB4URGB60
| Product Description | Color | λ (nm) | IF (mA) | IV (mcd) | VA 2θ1/2 | VF (V) | Lens Color | Datasheet | 3D Step Files |
|---|---|---|---|---|---|---|---|---|---|
| max | |||||||||
| INL-5TB4URGB25 | Red | 624 | 20 | 3200 | 25 | 2.4 | W.D. | Download | Download |
| Green | 525 | 20 | 4000 | 25 | 3.6 | ||||
| Blue | 470 | 20 | 2000 | 25 | 3.6 | ||||
| INL-5TB4URGB60 | Red | 624 | 20 | 600 | 60 | 2.4 | W.D. | Download | Download |
| Green | 525 | 20 | 1000 | 60 | 3.6 | ||||
| Blue | 470 | 20 | 500 | 60 | 3.6 |
