INA-912AXXX.GR Series

(1.35mm Lens Height)

Datasheet

Information Inquiry:

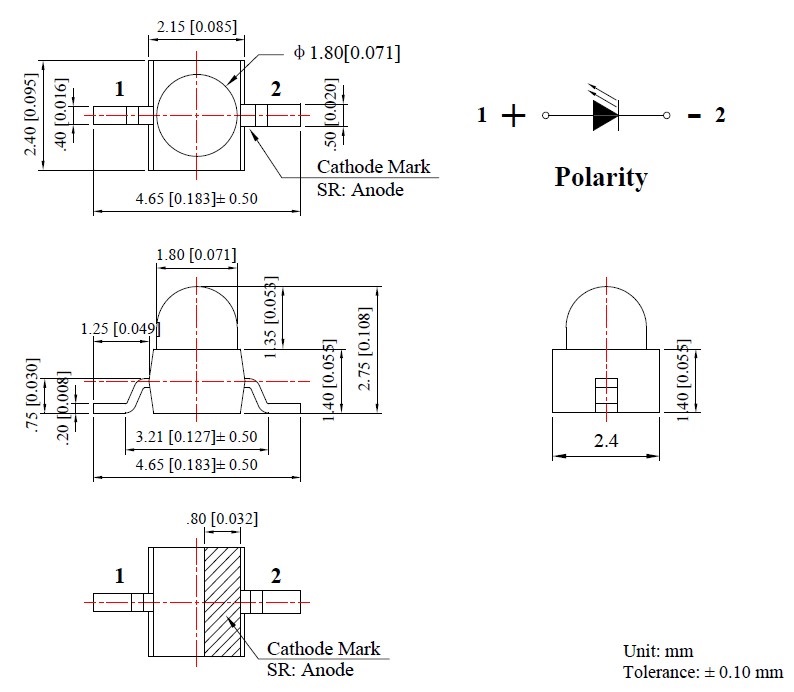

leadframe_1.8mm-CAD-01

Product Color λ (nm) IF (mA) IV (mcd) VA 2θ1/2 VF (V) Lens Color
max
INA-912AY25.GR Yellow 590 20 2000 25 2.4 W.C.
INA-912AYG25.GR Yellow Green 573 20 1800 25 2.4 W.C.
INA-912AR25.GR Red 624 20 2000 25 2.4 W.C.
INA-912AG25.GR Green 525 20 3000 25 3.6 W.C.
INA-912AB25.GR Blue 470 20 1000 25 3.6 W.C.
INA-912AYUW160.GR White x=0.31 y=0.32 20 500 160 3.6 Y.D.
