5mm Oval Lamp

Datasheet 3D Step File

Information Inquiry:

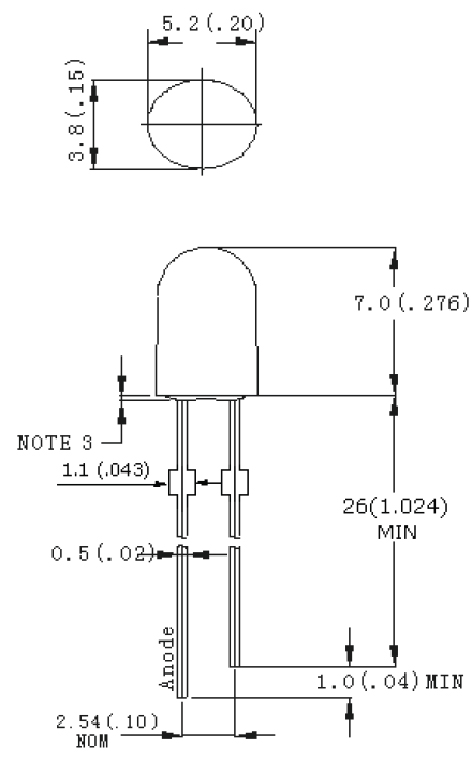

5mmOval_2leads-CAD-02
5mm Oval Lamp / 7.0mm Lens

Product λD(nm) Current (mA) IV (mcd) VA 2θ1/2 Vf (V) Emission Color Lens Color
typ max
HTOV511040UR 624 20 700 110/40 2.4 Hyper Red R.D.
HTOV511040UTG 525 20 1800 110/40 3.8 True Green G.D.
HTOV511040UY 590 20 850 110/40 2.4 Yellow Y.D.
HTOV511040UB 470 20 520 110/40 3.8 Blue B.D.
